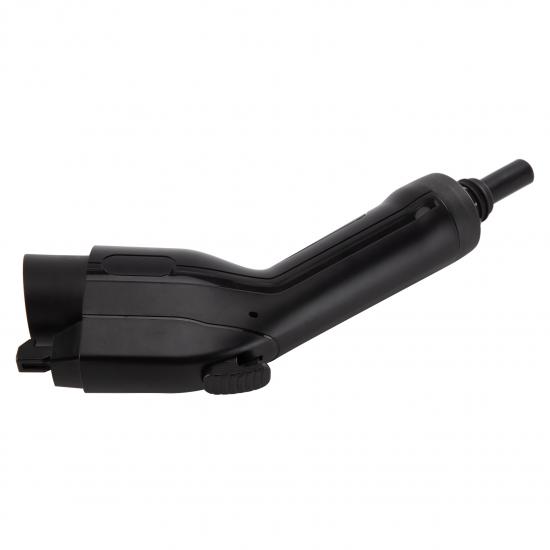

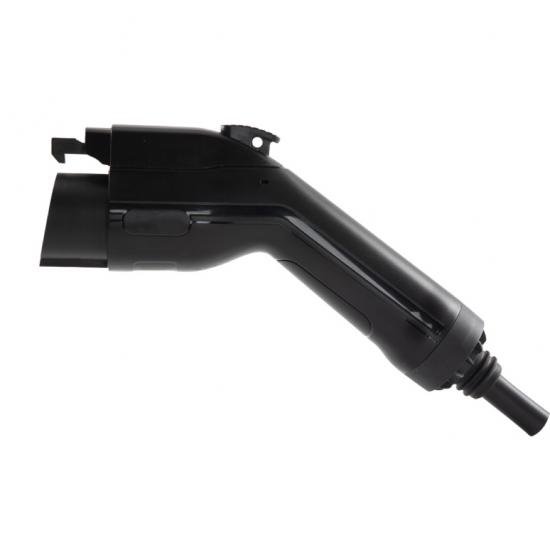

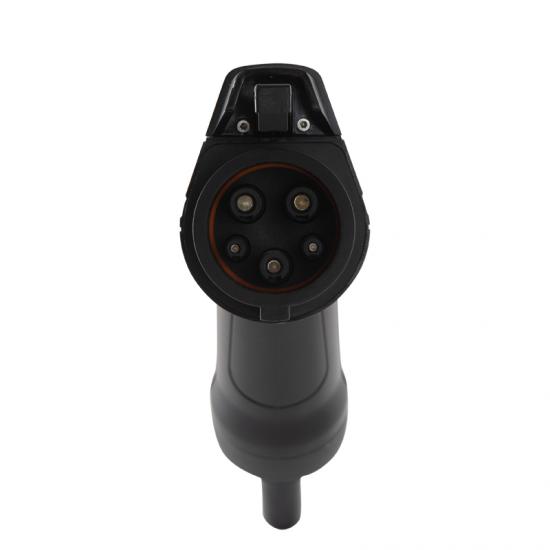

AC EV Charging Plug Type 1 for Electric Vehicle Charging Station

The AC EV Charging Plug is a reliable and efficient power source for electric vehicles. It is designed to provide a steady and powerful current of up to 48 amps with a maximum voltage of 250 volts.

  • Product origin:

    China

  • MOQ:

    20 pieces

  • Shipping port:

    Guangzhou

  • Lead Time:

    60 Days
INQUIRE now
Product Detail

Part No.: 80617009/80617010/80617011/80617012


Features:

● Ergonomic Design
The Type 1 AC EV plug is ergonomically designed with a comfortable grip. The size and shape of this plug have been crafted so that it really fits your palm. This allows for a safe and easy connection with any electric vehicle.

● High Quality
It has a high-quality copper alloy and thermoplastic casing that is designed to provide superior durability and protection. The pins offer a reliable connection, while the thermoplastic housing is strong enough for the plug to be protected from external factors such as weather.

● Multiple Protection
8 safety protections: Leakage Protection, Lightning, Short Circuit, Overvoltage, Overload Protection, Ground Protection, Double Temperature Rise Protection and Hot Plug Protection. Real monitoring of waterproof grade IP55.

Technical Specifications

Part No.

80617009

80617010

80617011

80617012

Rated Current

16A

32A

40A

48A

Rated Voltage

110V / 240V AC

Insulation Resistance

>500MΩ

Contact Resistance

0.5 mΩ Max

Withstand Voltage

2500V

Flammability Rating

UL94V-0

Mechanical Lifespan

>10000 Mating Cycles

Casing Protection Rating

IP55/NEMA 3R

Casing Material

Thermoplastic

Terminal Material

Copper alloy, silver plated + thermoplastic top

Operating Environment Temperature

-30ºC- +50ºC

Certifification

UL / CE / TUV

Package dimension

40.00cm * 40.00cm * 43.00cm

Weight

18kg
